Main schema ciq_identity_3.0.xsd
Namespace http://stix.mitre.org/extensions/Identity#CIQIdentity3.0-1
Annotations

This schema was originally developed by The MITRE Corporation. The STIX XML Schema implementation is maintained by The MITRE Corporation and developed by the open STIX Community. For more information, including how to get involved in the effort and how to submit change requests, please visit the STIX website at http://stix.mitre.org.
Element CIQIdentity3.0InstanceType / Specification
Namespace http://stix.mitre.org/extensions/Identity#CIQIdentity3.0-1
Annotations

The Specification field contains the structured characterization of an Identity utilizing the CIQ-PIL schema.

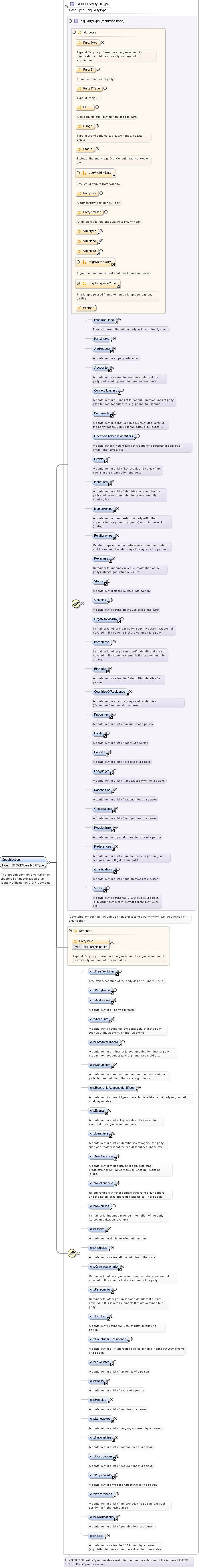

Diagram
Diagram xPIL_xsd.tmp#PartyType_PartyType xPIL_xsd.tmp#PartyType_PartyID xPIL_xsd.tmp#PartyType_PartyIDType xPIL_xsd.tmp#PartyType_ID xPIL_xsd.tmp#PartyType_Usage xPIL_xsd.tmp#PartyType_Status CommonTypes_xsd.tmp#grValidityDate xPIL_xsd.tmp#PartyType_PartyKey xPIL_xsd.tmp#PartyType_PartyKeyRef xlink-2003-12-31_xsd.tmp#type xlink-2003-12-31_xsd.tmp#label xlink-2003-12-31_xsd.tmp#href CommonTypes_xsd.tmp#grDataQuality CommonTypes_xsd.tmp#grLanguageCode xPIL_xsd.tmp#FreeTextLines xPIL_xsd.tmp#PartyName xPIL_xsd.tmp#Addresses xPIL_xsd.tmp#Accounts xPIL_xsd.tmp#ContactNumbers xPIL_xsd.tmp#Documents xPIL_xsd.tmp#ElectronicAddressIdentifiers xPIL_xsd.tmp#Events xPIL_xsd.tmp#Identifiers xPIL_xsd.tmp#Memberships xPIL_xsd.tmp#Relationships xPIL_xsd.tmp#Revenues xPIL_xsd.tmp#Stocks xPIL_xsd.tmp#Vehicles xPIL_xsd.tmp#OrganisationInfo xPIL_xsd.tmp#PersonInfo xPIL_xsd.tmp#BirthInfo xPIL_xsd.tmp#CountriesOfResidence xPIL_xsd.tmp#Favourites xPIL_xsd.tmp#Habits xPIL_xsd.tmp#Hobbies xPIL_xsd.tmp#Languages xPIL_xsd.tmp#Nationalities xPIL_xsd.tmp#Occupations xPIL_xsd.tmp#PhysicalInfo xPIL_xsd.tmp#Preferences xPIL_xsd.tmp#Qualifications xPIL_xsd.tmp#Visas xPIL_xsd.tmp#PartyType ciq_identity_3_0_xsd.tmp#STIXCIQIdentity3.0Type_PartyType xPIL_xsd.tmp#FreeTextLines xPIL_xsd.tmp#PartyName xPIL_xsd.tmp#Addresses xPIL_xsd.tmp#Accounts xPIL_xsd.tmp#ContactNumbers xPIL_xsd.tmp#Documents xPIL_xsd.tmp#ElectronicAddressIdentifiers xPIL_xsd.tmp#Events xPIL_xsd.tmp#Identifiers xPIL_xsd.tmp#Memberships xPIL_xsd.tmp#Relationships xPIL_xsd.tmp#Revenues xPIL_xsd.tmp#Stocks xPIL_xsd.tmp#Vehicles xPIL_xsd.tmp#OrganisationInfo xPIL_xsd.tmp#PersonInfo xPIL_xsd.tmp#BirthInfo xPIL_xsd.tmp#CountriesOfResidence xPIL_xsd.tmp#Favourites xPIL_xsd.tmp#Habits xPIL_xsd.tmp#Hobbies xPIL_xsd.tmp#Languages xPIL_xsd.tmp#Nationalities xPIL_xsd.tmp#Occupations xPIL_xsd.tmp#PhysicalInfo xPIL_xsd.tmp#Preferences xPIL_xsd.tmp#Qualifications xPIL_xsd.tmp#Visas ciq_identity_3_0_xsd.tmp#STIXCIQIdentity3.0Type
Type STIXCIQIdentity3.0Type
Type hierarchy
Children Accounts, Addresses, BirthInfo, ContactNumbers, CountriesOfResidence, Documents, ElectronicAddressIdentifiers, Events, Favourites, FreeTextLines, Habits, Hobbies, Identifiers, Languages, Memberships, Nationalities, Occupations, OrganisationInfo, PartyName, PersonInfo, PhysicalInfo, Preferences, Qualifications, Relationships, Revenues, Stocks, Vehicles, Visas
Attributes
QName Type Fixed Default Use Annotation
DataQualityType DataQualityTypeList optional
This attribute indicates what level of trust can be given to the parent element. Omit this attribute if the data quality is unknown. If the data quality is known, the value is "Valid, else "InValid"
DateValidFrom xs:dateTime optional
Could be start date, issue date, validity start date, etc
DateValidTo xs:dateTime optional
Could be end date, expiry date, validity end date, etc
ID String optional
A globally unique identifier assigned to party
LanguageCode xs:language optional
Human Language used. e.g. "en", "en-US", "en-AUS", etc
PartyID String optional
A unique identifier for party
PartyIDType PartyIDTypeList optional
Type of PartyID
PartyKey String optional
A primary key to reference Party.
PartyKeyRef String optional
A foreign key to reference attribute Key of Party.
PartyType PartyTypeList optional
Type of Party. e.g. Person or an organisation. An organisation could be university, college, club, association, company, etc
PartyType PartyTypeList optional
Type of Party. e.g. Person or an organisation. An organisation could be university, college, club, association, company, etc
Status StatusList optional
Status of the entity. e.g. Old, Current, Inactive, Active, etc
Usage PartyUsageList optional
Type of use of party date. e.g. exchange, update, create
ValidFrom xs:dateTime optional
Date the data quality is valid from
ValidTo xs:dateTime optional
Date the data quality is valid to
xlink:href anyURI optional
xlink:label NCName optional
xlink:type restriction of string optional
Source

<xs:element name="Specification" type="STIXCIQIdentity3.0Type">
  <xs:annotation>
    <xs:documentation>The Specification field contains the structured characterization of an Identity utilizing the CIQ-PIL schema.</xs:documentation>
  </xs:annotation>
</xs:element>
Element CIQIdentity3.0InstanceType / Role
Namespace http://stix.mitre.org/extensions/Identity#CIQIdentity3.0-1
Annotations

The Role field specifies a relevant role played by this entity.
Diagram
Diagram
Type xs:string
Source

<xs:element name="Role" type="xs:string" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>The Role field specifies a relevant role played by this entity.</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type CIQIdentity3.0InstanceType
Namespace http://stix.mitre.org/extensions/Identity#CIQIdentity3.0-1
Annotations

The CIQIdentity3.0InstanceType provides an extension to the IdentityStructureAbstractType which imports and leverages version 3.0 of the OASIS CIQ-PIL schema for structured characterization of Identities.

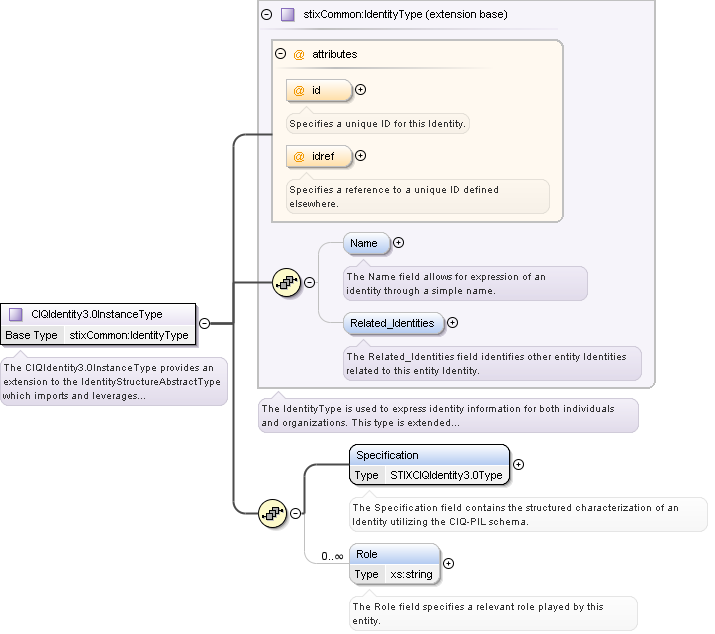

Diagram
Diagram stix_common_xsd.tmp#IdentityType_id stix_common_xsd.tmp#IdentityType_idref stix_common_xsd.tmp#IdentityType_Name stix_common_xsd.tmp#IdentityType_Related_Identities stix_common_xsd.tmp#IdentityType ciq_identity_3_0_xsd.tmp#CIQIdentity3.0InstanceType_Specification ciq_identity_3_0_xsd.tmp#CIQIdentity3.0InstanceType_Role
Type extension of stixCommon:IdentityType
Type hierarchy
Children Role, Specification, stixCommon:Name, stixCommon:Related_Identities
Attributes
QName Type Fixed Default Use Annotation
id xs:QName optional
Specifies a unique ID for this Identity.
idref xs:QName optional
Specifies a reference to a unique ID defined elsewhere.
Source

<xs:complexType name="CIQIdentity3.0InstanceType">
  <xs:annotation>
    <xs:documentation>The CIQIdentity3.0InstanceType provides an extension to the IdentityStructureAbstractType which imports and leverages version 3.0 of the OASIS CIQ-PIL schema for structured characterization of Identities.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="stixCommon:IdentityType">
      <xs:sequence>
        <xs:element name="Specification" type="STIXCIQIdentity3.0Type">
          <xs:annotation>
            <xs:documentation>The Specification field contains the structured characterization of an Identity utilizing the CIQ-PIL schema.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Role" type="xs:string" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>The Role field specifies a relevant role played by this entity.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type STIXCIQIdentity3.0Type
Namespace http://stix.mitre.org/extensions/Identity#CIQIdentity3.0-1
Annotations

The STIXCIQIdentityType provides a restriction and minor extension of the imported OASIS CIQ-PIL PartyType for use in characterizing STIX Identities.
Diagram
Diagram xPIL_xsd.tmp#PartyType_PartyType xPIL_xsd.tmp#PartyType_PartyID xPIL_xsd.tmp#PartyType_PartyIDType xPIL_xsd.tmp#PartyType_ID xPIL_xsd.tmp#PartyType_Usage xPIL_xsd.tmp#PartyType_Status CommonTypes_xsd.tmp#grValidityDate xPIL_xsd.tmp#PartyType_PartyKey xPIL_xsd.tmp#PartyType_PartyKeyRef xlink-2003-12-31_xsd.tmp#type xlink-2003-12-31_xsd.tmp#label xlink-2003-12-31_xsd.tmp#href CommonTypes_xsd.tmp#grDataQuality CommonTypes_xsd.tmp#grLanguageCode xPIL_xsd.tmp#FreeTextLines xPIL_xsd.tmp#PartyName xPIL_xsd.tmp#Addresses xPIL_xsd.tmp#Accounts xPIL_xsd.tmp#ContactNumbers xPIL_xsd.tmp#Documents xPIL_xsd.tmp#ElectronicAddressIdentifiers xPIL_xsd.tmp#Events xPIL_xsd.tmp#Identifiers xPIL_xsd.tmp#Memberships xPIL_xsd.tmp#Relationships xPIL_xsd.tmp#Revenues xPIL_xsd.tmp#Stocks xPIL_xsd.tmp#Vehicles xPIL_xsd.tmp#OrganisationInfo xPIL_xsd.tmp#PersonInfo xPIL_xsd.tmp#BirthInfo xPIL_xsd.tmp#CountriesOfResidence xPIL_xsd.tmp#Favourites xPIL_xsd.tmp#Habits xPIL_xsd.tmp#Hobbies xPIL_xsd.tmp#Languages xPIL_xsd.tmp#Nationalities xPIL_xsd.tmp#Occupations xPIL_xsd.tmp#PhysicalInfo xPIL_xsd.tmp#Preferences xPIL_xsd.tmp#Qualifications xPIL_xsd.tmp#Visas xPIL_xsd.tmp#PartyType ciq_identity_3_0_xsd.tmp#STIXCIQIdentity3.0Type_PartyType xPIL_xsd.tmp#FreeTextLines xPIL_xsd.tmp#PartyName xPIL_xsd.tmp#Addresses xPIL_xsd.tmp#Accounts xPIL_xsd.tmp#ContactNumbers xPIL_xsd.tmp#Documents xPIL_xsd.tmp#ElectronicAddressIdentifiers xPIL_xsd.tmp#Events xPIL_xsd.tmp#Identifiers xPIL_xsd.tmp#Memberships xPIL_xsd.tmp#Relationships xPIL_xsd.tmp#Revenues xPIL_xsd.tmp#Stocks xPIL_xsd.tmp#Vehicles xPIL_xsd.tmp#OrganisationInfo xPIL_xsd.tmp#PersonInfo xPIL_xsd.tmp#BirthInfo xPIL_xsd.tmp#CountriesOfResidence xPIL_xsd.tmp#Favourites xPIL_xsd.tmp#Habits xPIL_xsd.tmp#Hobbies xPIL_xsd.tmp#Languages xPIL_xsd.tmp#Nationalities xPIL_xsd.tmp#Occupations xPIL_xsd.tmp#PhysicalInfo xPIL_xsd.tmp#Preferences xPIL_xsd.tmp#Qualifications xPIL_xsd.tmp#Visas
Type restriction of PartyType
Type hierarchy
Used by
Children Accounts, Addresses, BirthInfo, ContactNumbers, CountriesOfResidence, Documents, ElectronicAddressIdentifiers, Events, Favourites, FreeTextLines, Habits, Hobbies, Identifiers, Languages, Memberships, Nationalities, Occupations, OrganisationInfo, PartyName, PersonInfo, PhysicalInfo, Preferences, Qualifications, Relationships, Revenues, Stocks, Vehicles, Visas
Attributes
QName Type Fixed Default Use Annotation
DataQualityType DataQualityTypeList optional
This attribute indicates what level of trust can be given to the parent element. Omit this attribute if the data quality is unknown. If the data quality is known, the value is "Valid, else "InValid"
DateValidFrom xs:dateTime optional
Could be start date, issue date, validity start date, etc
DateValidTo xs:dateTime optional
Could be end date, expiry date, validity end date, etc
ID String optional
A globally unique identifier assigned to party
LanguageCode xs:language optional
Human Language used. e.g. "en", "en-US", "en-AUS", etc
PartyID String optional
A unique identifier for party
PartyIDType PartyIDTypeList optional
Type of PartyID
PartyKey String optional
A primary key to reference Party.
PartyKeyRef String optional
A foreign key to reference attribute Key of Party.
PartyType PartyTypeList optional
Type of Party. e.g. Person or an organisation. An organisation could be university, college, club, association, company, etc
PartyType PartyTypeList optional
Type of Party. e.g. Person or an organisation. An organisation could be university, college, club, association, company, etc
Status StatusList optional
Status of the entity. e.g. Old, Current, Inactive, Active, etc
Usage PartyUsageList optional
Type of use of party date. e.g. exchange, update, create
ValidFrom xs:dateTime optional
Date the data quality is valid from
ValidTo xs:dateTime optional
Date the data quality is valid to
xlink:href anyURI optional
xlink:label NCName optional
xlink:type restriction of string optional
Source

<xs:complexType name="STIXCIQIdentity3.0Type">
  <xs:annotation>
    <xs:documentation>The STIXCIQIdentityType provides a restriction and minor extension of the imported OASIS CIQ-PIL PartyType for use in characterizing STIX Identities.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:restriction base="ciq:PartyType">
      <xs:sequence>
        <xs:element minOccurs="0" ref="ciq:FreeTextLines"/>
        <xs:element minOccurs="0" ref="ciq:PartyName"/>
        <xs:element minOccurs="0" ref="ciq:Addresses"/>
        <xs:element minOccurs="0" ref="ciq:Accounts">
          <xs:annotation>
            <xs:documentation>A container to define the accounts details of the party such as utility account, financil accounts</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element minOccurs="0" ref="ciq:ContactNumbers"/>
        <xs:element minOccurs="0" ref="ciq:Documents">
          <xs:annotation>
            <xs:documentation>A container for identification document and cards of the party that are unique to the party. e.g. license, identification card, credit card, etc</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element minOccurs="0" ref="ciq:ElectronicAddressIdentifiers"/>
        <xs:element minOccurs="0" ref="ciq:Events"/>
        <xs:element minOccurs="0" ref="ciq:Identifiers"/>
        <xs:element minOccurs="0" ref="ciq:Memberships">
          <xs:annotation>
            <xs:documentation>A container for memberships of party with other organisations (e.g. industry groups) or social networks (clubs, association, etc)</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element minOccurs="0" ref="ciq:Relationships">
          <xs:annotation>
            <xs:documentation>Relationships with other parties (persons or organisations, and the nature of relationship). Examples: - For person: Contacts, blood relatives, friends, referees, customers, etc - for Organisation: Subsidiary, Parent company, Branches, Divisions, Partners, etc</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element minOccurs="0" ref="ciq:Revenues">
          <xs:annotation>
            <xs:documentation>Container for income / revenue information of the party (salary/organisation revenue)</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element minOccurs="0" ref="ciq:Stocks"/>
        <xs:element minOccurs="0" ref="ciq:Vehicles"/>
        <xs:element minOccurs="0" ref="ciq:OrganisationInfo">
          <xs:annotation>
            <xs:documentation>Container for other organisation specific details that are not covered in this schema that are common to a party</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element minOccurs="0" ref="ciq:PersonInfo">
          <xs:annotation>
            <xs:documentation>Container for other person specific details that are not covered in this schema elements that are common to a party</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element minOccurs="0" ref="ciq:BirthInfo"/>
        <xs:element minOccurs="0" ref="ciq:CountriesOfResidence"/>
        <xs:element minOccurs="0" ref="ciq:Favourites"/>
        <xs:element minOccurs="0" ref="ciq:Habits"/>
        <xs:element minOccurs="0" ref="ciq:Hobbies"/>
        <xs:element minOccurs="0" ref="ciq:Languages"/>
        <xs:element minOccurs="0" ref="ciq:Nationalities"/>
        <xs:element minOccurs="0" ref="ciq:Occupations"/>
        <xs:element minOccurs="0" ref="ciq:PhysicalInfo"/>
        <xs:element minOccurs="0" ref="ciq:Preferences"/>
        <xs:element minOccurs="0" ref="ciq:Qualifications"/>
        <xs:element minOccurs="0" ref="ciq:Visas"/>
      </xs:sequence>
      <xs:attribute form="qualified" name="PartyType" type="ciq:PartyTypeList">
        <xs:annotation>
          <xs:documentation>Type of Party. e.g. Person or an organisation. An organisation could be university, college, club, association, company, etc</xs:documentation>
        </xs:annotation>
      </xs:attribute>
    </xs:restriction>
  </xs:complexContent>
</xs:complexType>
Attribute STIXCIQIdentity3.0Type / @PartyType
Namespace http://stix.mitre.org/extensions/Identity#CIQIdentity3.0-1
Annotations

Type of Party. e.g. Person or an organisation. An organisation could be university, college, club, association, company, etc
Type PartyTypeList
Used by
Complex Type STIXCIQIdentity3.0Type
Source

<xs:attribute form="qualified" name="PartyType" type="ciq:PartyTypeList">
  <xs:annotation>
    <xs:documentation>Type of Party. e.g. Person or an organisation. An organisation could be university, college, club, association, company, etc</xs:documentation>
  </xs:annotation>
</xs:attribute>
XML Schema documentation generated by ® XML Editor.
